Agilent GC Nut and Ferrule Compatibility
| Available Ferrule Cat.# | Description | Compatible Nut Cat.# | |||||
|---|---|---|---|---|---|---|---|

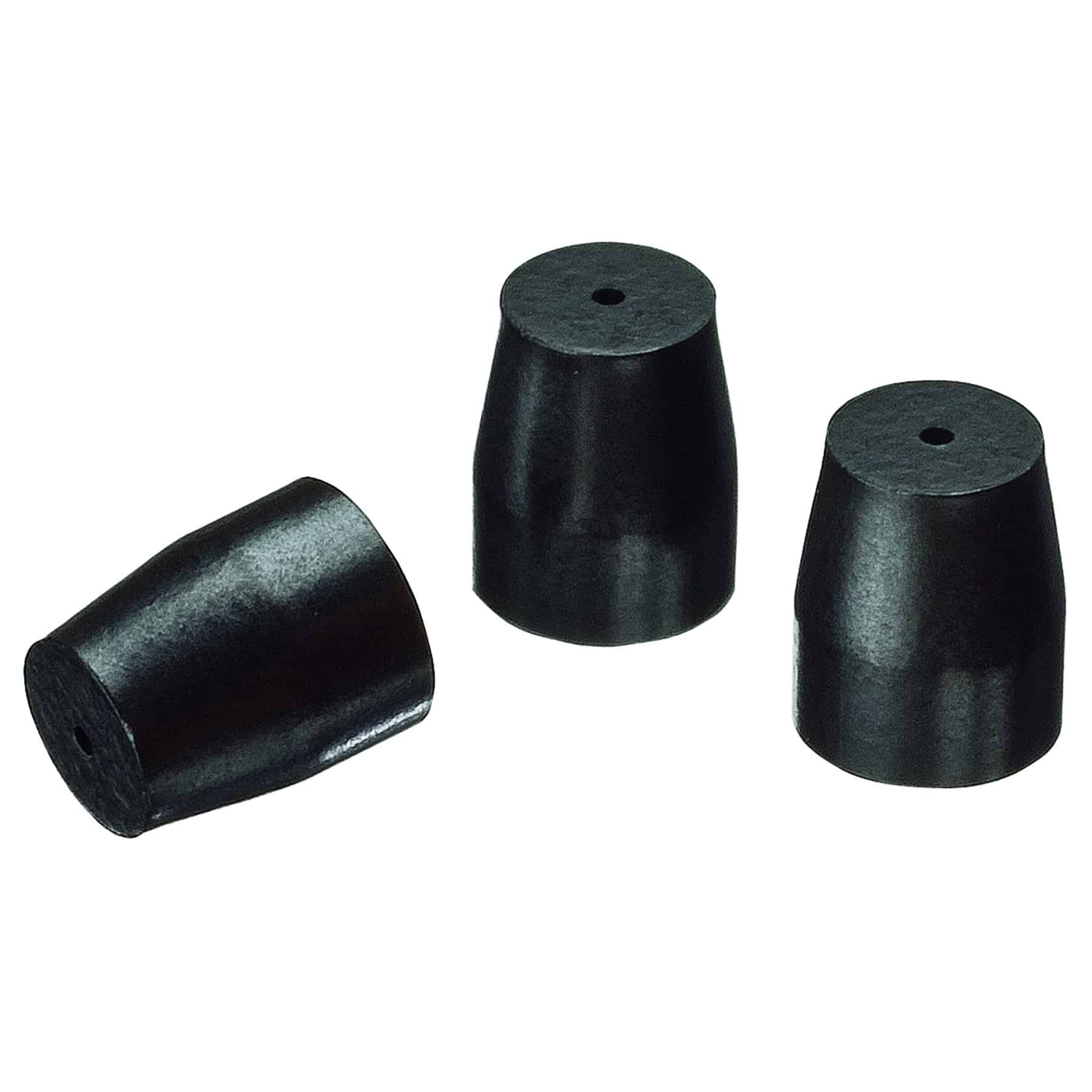

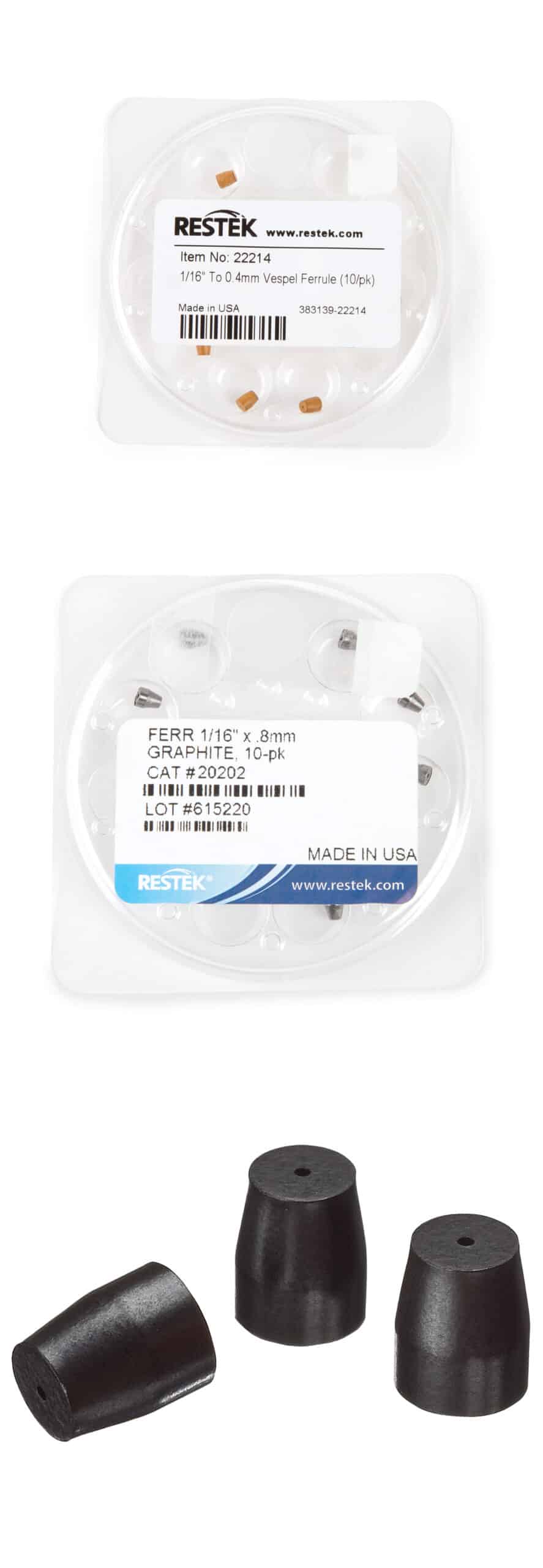

 | 22214, 20200, 20227, 20211, 20229, 27062, 27063 | Standard Ferrules (Fit ≤ 0.25 mm ID Fused Silica Columns and 0.18 mm ID MXT Columns) | 20883 & 21879  Capillary Column Nuts | 21041  Finger-Tight Capillary Column Nuts | N/A | 22633 & 22636  Extended Capillary Column Nuts | 22347  Hot Swap Capillary Column Nuts |
| 22215, 20201, 20228, 20212, 20231, 27064, 27065 | Standard Ferrules (Fit 0.32 mm ID Fused Silica Columns) & Standard Ferrules (Fit 0.25/0.32 mm ID MXT Columns) | ||||||
| 22216, 20202, 20224, 20213, 20230, 27067, 27068 | Standard Ferrules (Fit 0.45/0.53 mm ID Fused Silica Columns) & Standard Ferrules (Fit 0.53 mm ID MXT Columns) | ||||||
| 20232, 27066 | Standard Ferrules (Fit 0.28 mm ID MXT Columns) | ||||||
| Capillary Ferrules (includes all the above) | Capillary Ferrules for 1/16″ Compression-Type Fittings | ||||||
 | 20250, 20251, 20238, 20239, 27070, 27071 | Compact Ferrules (Fit ≤ 0.25 mm ID Fused Silica Columns and 0.18 mm ID MXT Columns) | 21884 & 21878  Capillary Column Nuts | 21040  Finger-Tight Capillary Column Nuts | N/A | 22634 & 22637 Extended Capillary Column Nuts | 22348 Hot Swap Capillary Column Nuts |
| 21007, 21008, 20248, 20249, 27072, 27073 | Compact Ferrules (Fit 0.32 mm ID Fused Silica Columns) & Compact Ferrules (Fit 0.25/0.32 mm ID MXT Columns) | ||||||

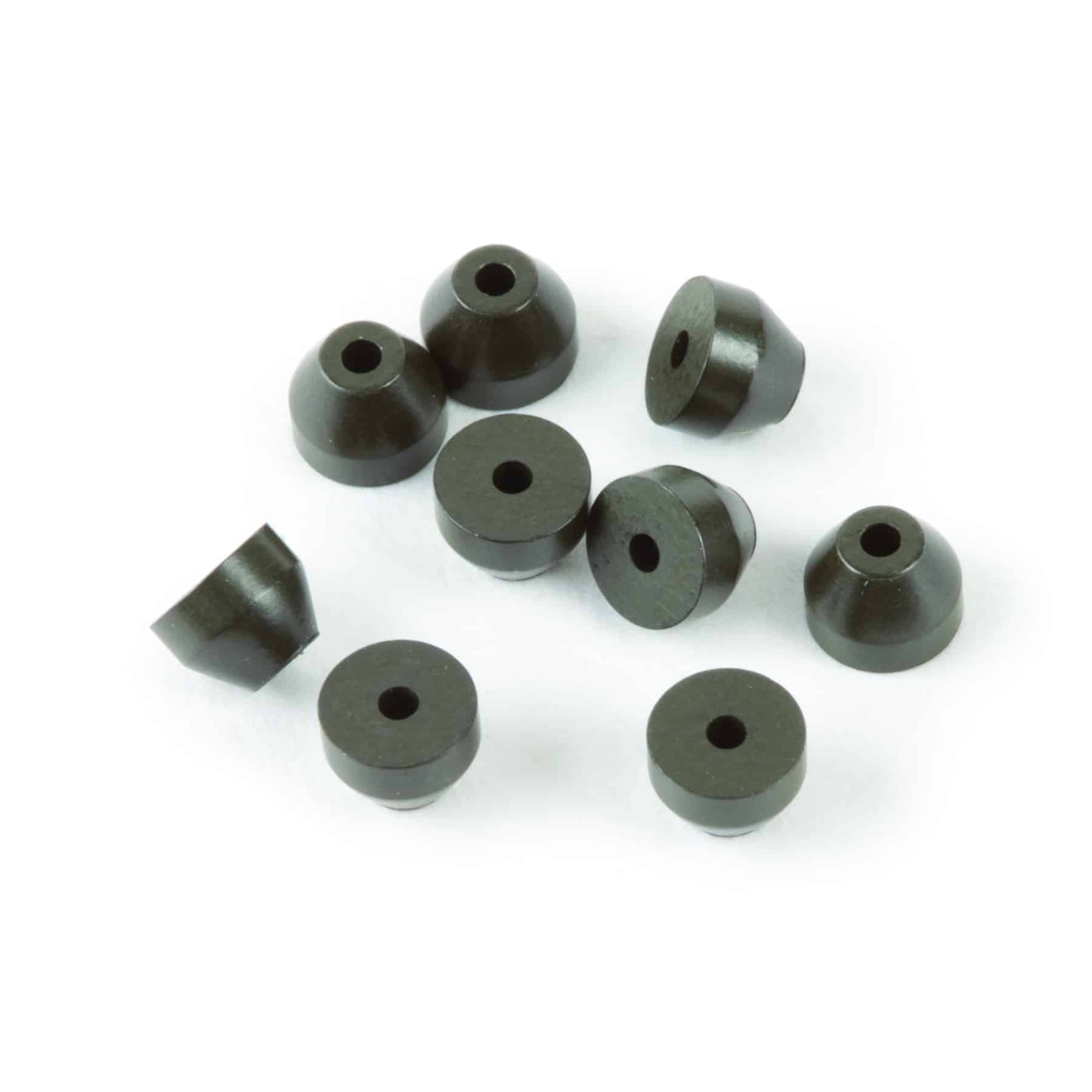

| 20252, 20253, 20263, 20264, 27074, 27075 | Compact Ferrules (Fit 0.45/0.53 mm ID Fused Silica Columns) & Compact Ferrules (Fit 0.53 mm ID MXT Columns) | ||||||
| 21059, 21061 | Compact Ferrules for Micropacked Columns | ||||||
| Need more help finding the correct ferrule to install your column in an Agilent GC? | |||||||
Shimadzu GC Nut and Ferrule Compatibility
| Available Ferrule Cat.# | Description | Available Inlet Adaptor and Compatible Nut Cat.# | |||
|---|---|---|---|---|---|
| 22214, 20200, 20227, 20211, 20229, 27062, 27063 | Standard Ferrules (Fit ≤ 0.25 mm ID Fused Silica Columns and 0.18 mm ID MXT Columns) | 27222, 27223  Inlet Adaptor (for Shimadzu 17A, 2010, 2014, and 2030 GCs) | 27224  Hot Swap Column Nut | N/A |
| 22215, 20201, 20228, 20212, 20231, 27064, 27065 | Standard Ferrules (Fit 0.32 mm ID Fused Silica Columns) & Standard Ferrules (Fit 0.25/0.32 mm ID MXT Columns) | ||||
| 22216, 20202, 20224, 20213, 20230, 27067, 27068 | Standard Ferrules (Fit 0.45/0.53 mm ID Fused Silica Columns) & Standard Ferrules (Fit 0.53 mm ID MXT Columns) | ||||
| 20232, 27066 | Standard Ferrules (Fit 0.28 mm ID MXT Columns) | ||||
| Capillary Ferrules (includes all the above) | Capillary Ferrules for 1/16″ Compression-Type Fittings | ||||

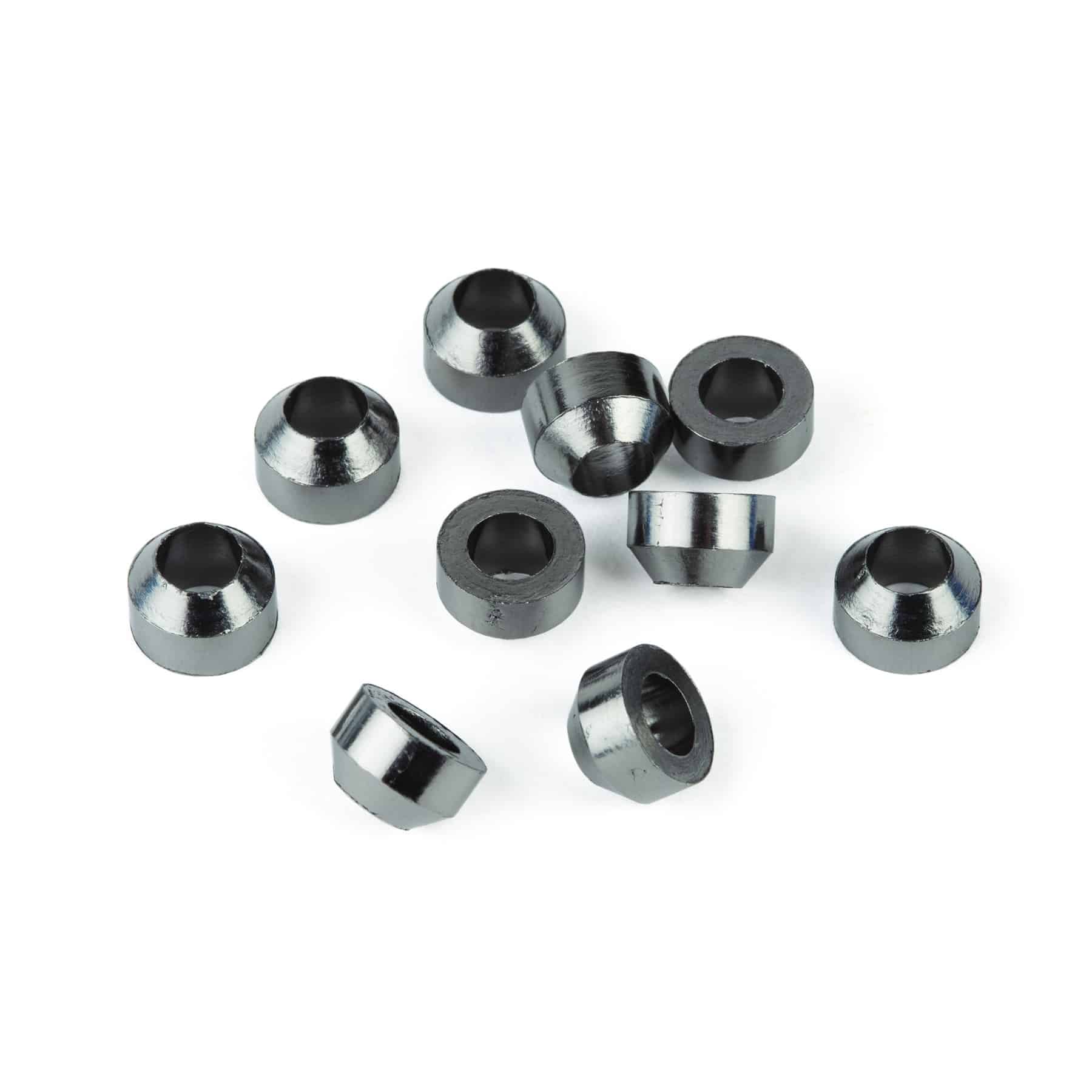

 | 21121 | 5 mm Ferrules for Use with Packed Columns (for Shimadzu 17A GCs) | N/A | N/A | N/A |

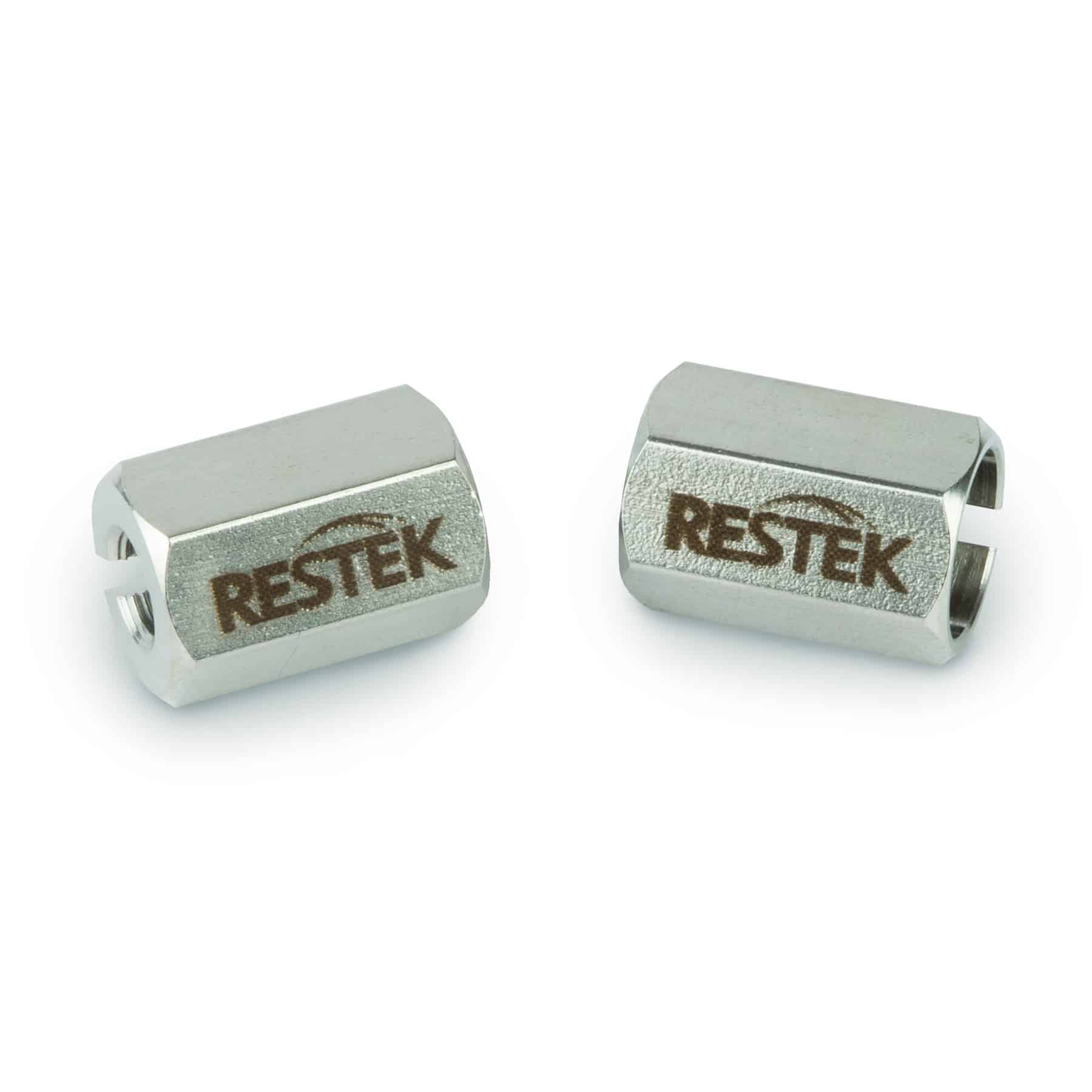

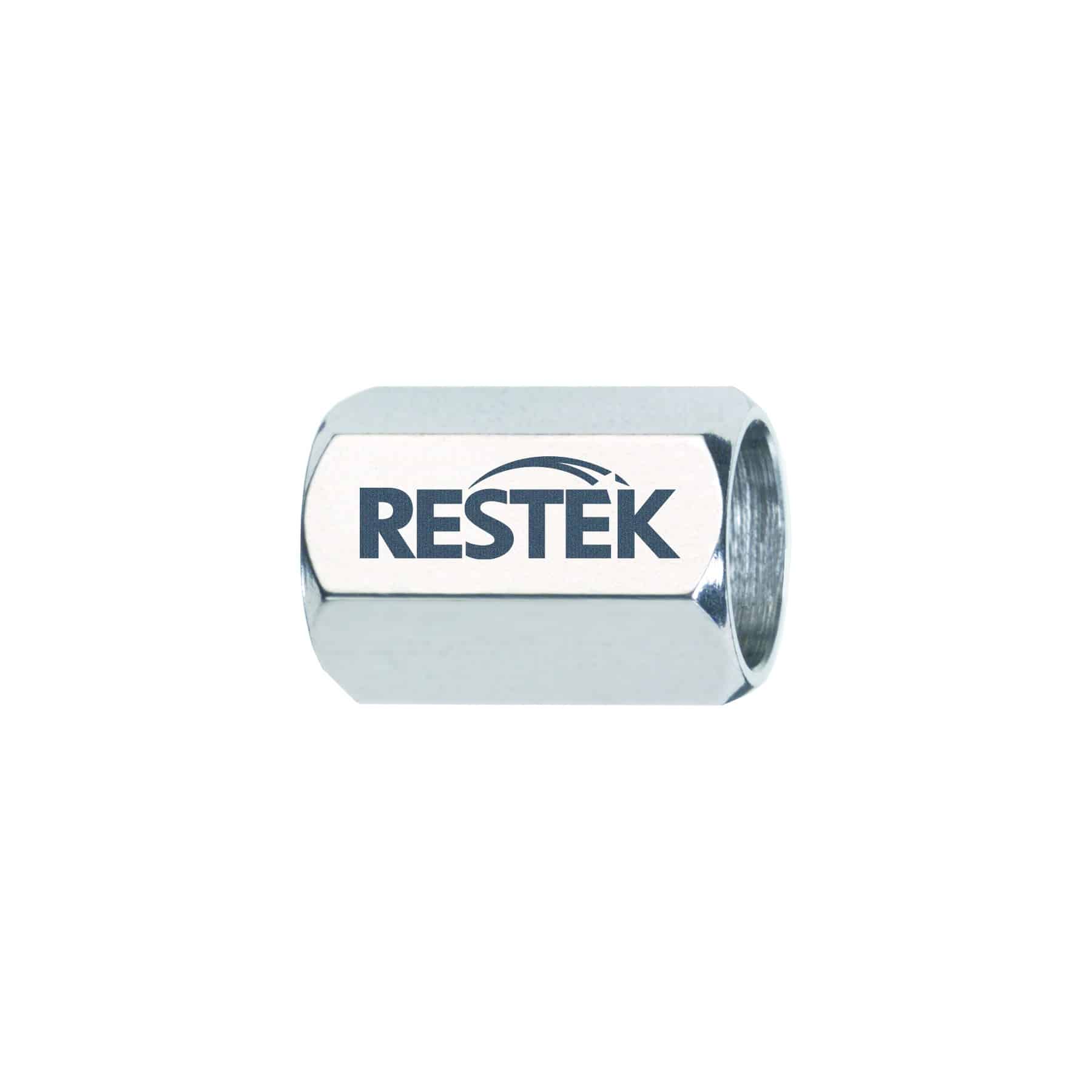

 | 24827 | Fit ≤ 0.25 mm ID Fused Silica Columns and 0.18 mm ID MXT Columns | 22688  Slot Capillary Nut | 20375  No Slot Enhanced Capillary Nut | 27230  Hot Swap Column Nut |
| 24828 | Fit 0.32 mm ID Fused Silica Columns & Fit 0.25/0.32 mm ID MXT Columns | ||||

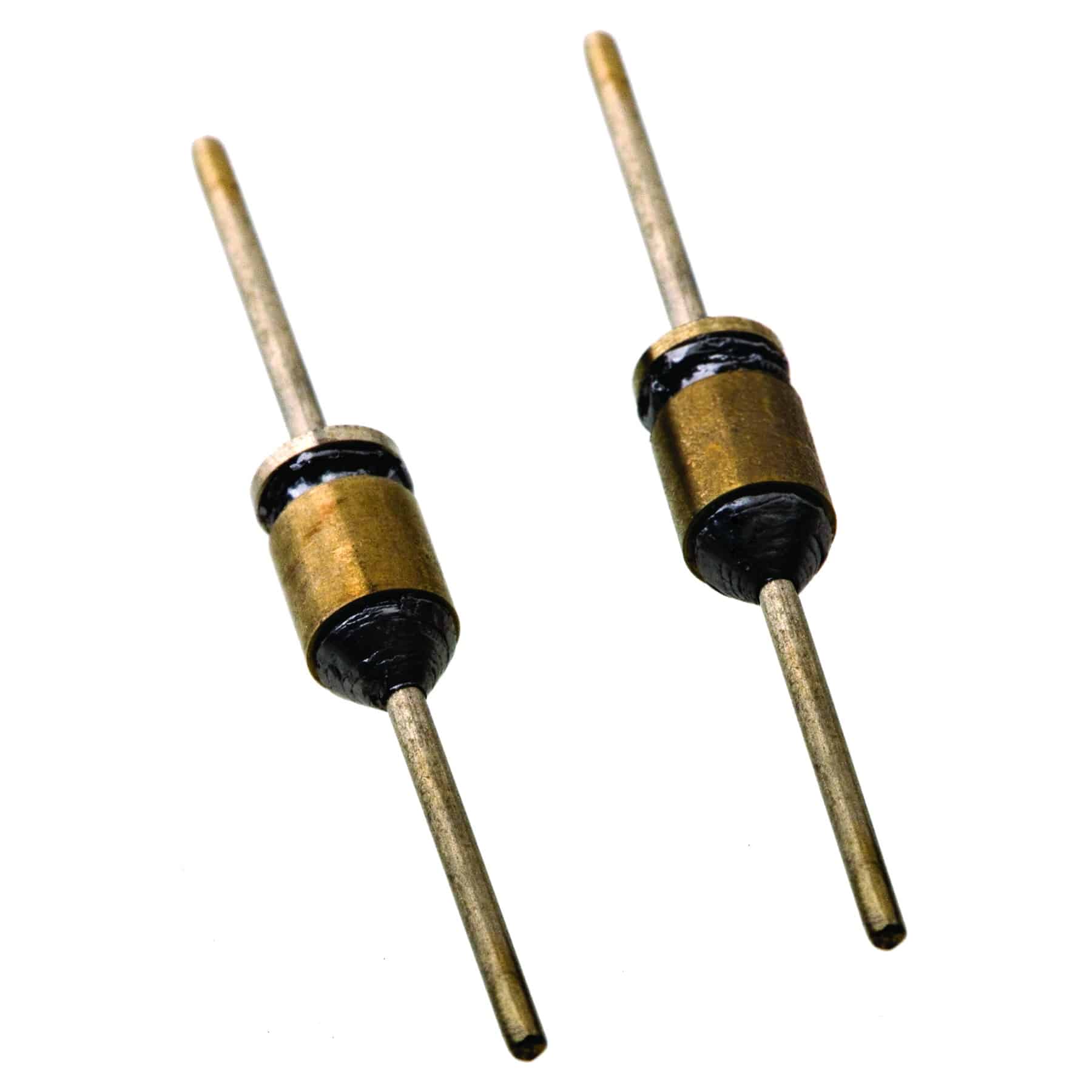

| 24829 | Fit 0.45/0.53 mm ID Fused Silica Columns & Fit 0.53 mm ID MXT Columns | ||||
| Need more help finding the correct ferrule to install your column in a Shimadzu GC? | |||||
Thermo TRACE 1300/1310 and 1600/1610 GC Nut and Ferrule Compatibility
| Available Ferrule Cat.# | Description | Compatible Nut Cat.# | |||||
|---|---|---|---|---|---|---|---|
| 22214, 20200, 20227, 20211, 20229, 27062, 27063 | Standard Ferrules (Fit ≤ 0.25 mm ID Fused Silica Columns and 0.18 mm ID MXT Columns) | 20883 & 21879 Capillary Column Nuts | 21041 Finger-Tight Capillary Column Nuts | N/A | 22633 & 22636 Extended Capillary Column Nuts | 22347 Hot Swap Capillary Column Nuts |
| 22215, 20201, 20228, 20212, 20231, 27064, 27065 | Standard Ferrules (Fit 0.32 mm ID Fused Silica Columns) & Standard Ferrules (Fit 0.25/0.32 mm ID MXT Columns) | ||||||
| 22216, 20202, 20224, 20213, 20230, 27067, 27068 | Standard Ferrules (Fit 0.45/0.53 mm ID Fused Silica Columns) & Standard Ferrules (Fit 0.53 mm ID MXT Columns) | ||||||
| 20232, 27066 | Standard Ferrules (Fit 0.28 mm ID MXT Columns) | ||||||
| Capillary Ferrules (includes all the above) | Capillary Ferrules for 1/16″ Compression-Type Fittings | ||||||
| 20250, 20251, 20238, 20239, 27070, 27071 | Compact Ferrules (Fit ≤ 0.25 mm ID Fused Silica Columns and 0.18 mm ID MXT Columns) | 21884 & 21878 Capillary Column Nuts | 21040 Finger-Tight Capillary Column Nuts | N/A | 22634 & 22637 Extended Capillary Column Nuts | 22348 Hot Swap Capillary Column Nuts |
| 21007, 21008, 20248, 20249, 27072, 27073 | Compact Ferrules (Fit 0.32 mm ID Fused Silica Columns) & Compact Ferrules (Fit 0.25/0.32 mm ID MXT Columns) | ||||||
| 20252, 20253, 20263, 20264, 27074, 27075 | Compact Ferrules (Fit 0.45/0.53 mm ID Fused Silica Columns) & Compact Ferrules (Fit 0.53 mm ID MXT Columns) | ||||||
| 21059, 21061 | Compact Ferrules for Micropacked Columns | ||||||
| Need more help finding the correct ferrule to install your column in an Thermo Scientific GC? | |||||||
Older Model Thermo GC Nut and Ferrule Compatibility
| Available Ferrule Cat.# | Description | Compatible Nut Cat.# | ||||
|---|---|---|---|---|---|---|
| 22214, 20200, 20227, 20211, 20229, 27062, 27063 | Standard Ferrules (Fit ≤ 0.25 mm ID Fused Silica Columns and 0.18 mm ID MXT Columns) | 24916  Adaptor For Capillary Column on Detector Base | 24917  Adaptor for Capillary Columnon Split/Splitless Injector | 20543  Siltek-Treated Adaptor for Capillary Column on Split/Splitless Injector | 27224 Hot Swap Column Nut |
| 22215, 20201, 20228, 20212, 20231, 27064, 27065 | Standard Ferrules (Fit 0.32 mm ID Fused Silica Columns) & Standard Ferrules (Fit 0.25/0.32 mm ID MXT Columns) | |||||
| 22216, 20202, 20224, 20213, 20230, 27067, 27068 | Standard Ferrules (Fit 0.45/0.53 mm ID Fused Silica Columns) & Standard Ferrules (Fit 0.53 mm ID MXT Columns) | |||||
| 20232, 27066 | Standard Ferrules (Fit 0.28 mm ID MXT Columns) | |||||
| Capillary Ferrules (includes all the above) | Capillary Ferrules for 1/16″ Compression-Type Fittings | |||||
 | 20280, 20281 | Ferrules for Thermo Scientific GCs (Fit ≤ 0.25 mm ID Fused Silica Columns and 0.18 mm ID MXT Columns) | 24969  Adaptor for Capillary Column on Detector Base | N/A | 20544  Siltek-Treated Adaptor for Capillary Column on Split/Splitless Injector | 24973  Fixing Nut for Capillary Column for Split/Splitless Injector on Thermo Scientific TRACE, 8000, 8000 TOP & Focus SSL |
| 20282, 20283 | Ferrules for Thermo Scientific GCs (Fit 0.32 mm ID Fused Silica Columns) & Ferrules for Thermo Scientific GCs (Fit 0.25/0.32 mm ID MXT Columns) | |||||

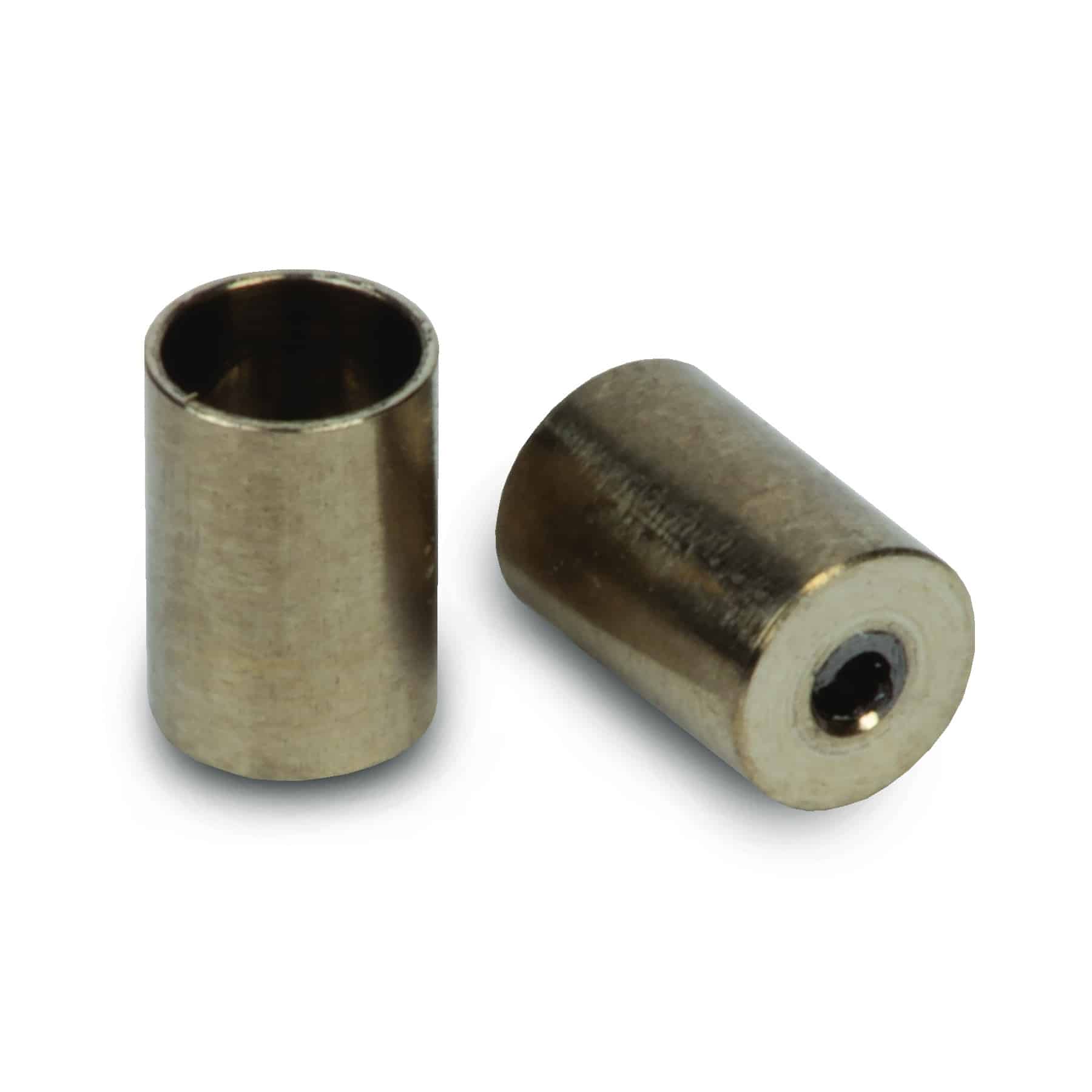

| 20284, 20285 | Ferrules for Thermo Scientific GCs (Fit 0.45/0.53 mm ID Fused Silica Columns) & Ferrules for Thermo Scientific GCs (Fit 0.53 mm ID MXT Columns) | |||||
| Need more help finding the correct ferrule to install your column in a Thermo Scientific GC? | ||||||
Varian GC Nut and Ferrule Compatibility
| Available Ferrule Cat.# | Description | Compatible Nut Cat.# | |
|---|---|---|---|

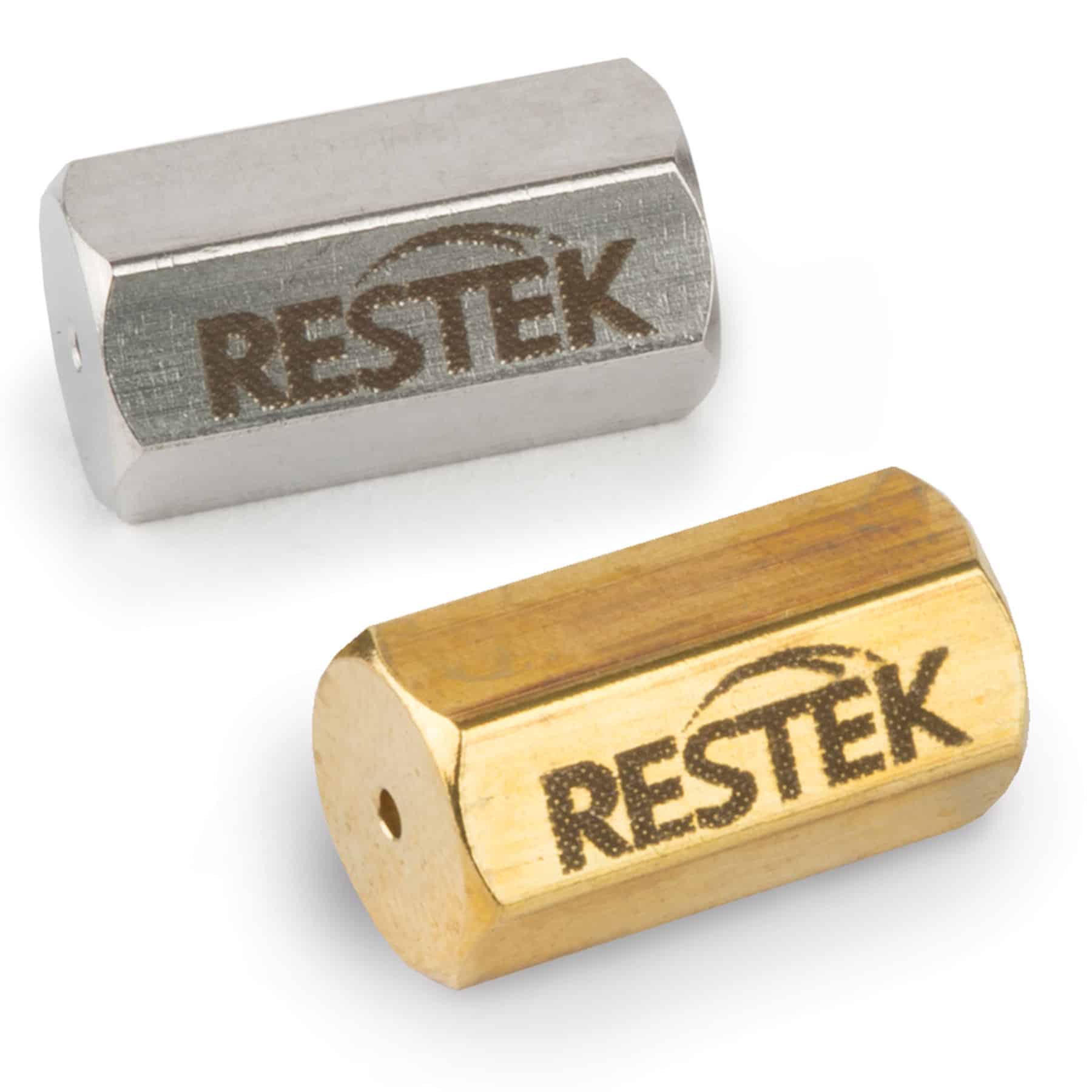

| 22214, 20200, 20227, 20211, 20229, 27062, 27063 | Standard Ferrules (Fit ≤ 0.25 mm ID Fused Silica Columns and 0.18 mm ID MXT Columns) | 20881 & 20882  Capillary Nuts |
| 22215, 20201, 20228, 20212, 20231, 27064, 27065 | Standard Ferrules (Fit 0.32 mm ID Fused Silica Columns) & Standard Ferrules (Fit 0.25/0.32 mm ID MXT Columns) | ||
| 22216, 20202, 20224, 20213, 20230, 27067, 27068 | Standard Ferrules (Fit 0.45/0.53 mm ID Fused Silica Columns) & Standard Ferrules (Fit 0.53 mm ID MXT Columns) | ||
| 20232, 27066 | Standard Ferrules (Fit 0.28 mm ID MXT Columns) | ||
| Capillary Ferrules (includes all the above) | Capillary Ferrules for 1/16″ Compression-Type Fittings | ||
| Need more help finding the correct ferrule to install your column in a Bruker/Varian GC? | |||
PerkinElmer GC Nut and Ferrule Compatibility
| Available Ferrule Cat.# | Description | Compatible Nut Cat.# | |
|---|---|---|---|
 | 20211, 20229, 27062, 27063 | Standard Ferrules for PerkinElmer GCs (Fit ≤ 0.25 mm ID Fused Silica Columns and 0.18 mm ID MXT Columns) | No compatible nut for PerkinElmer systems. |
| 20212, 20231, 27064, 27065 | Standard Ferrules for PerkinElmer GCs (Fit 0.32 mm ID Fused Silica Columns) & Standard Ferrules for PerkinElmer GCs (Fit 0.25/0.32 mm ID MXT Columns) | ||
| 20213, 20230, 27067, 27068 | Standard Ferrules for PerkinElmer GCs (Fit 0.45/0.53 mm ID Fused Silica Columns) & Standard Ferrules for PerkinElmer GCs (Fit 0.53 mm ID MXT Columns) | ||
| Need more help finding the correct ferrule to install your column in a PerkinElmer GC? | |||
SRI and Buck GC Nut and Ferrule Compatibility
| Available Ferrule Cat.# | Description | Compatible Nut Cat.# | ||
|---|---|---|---|---|

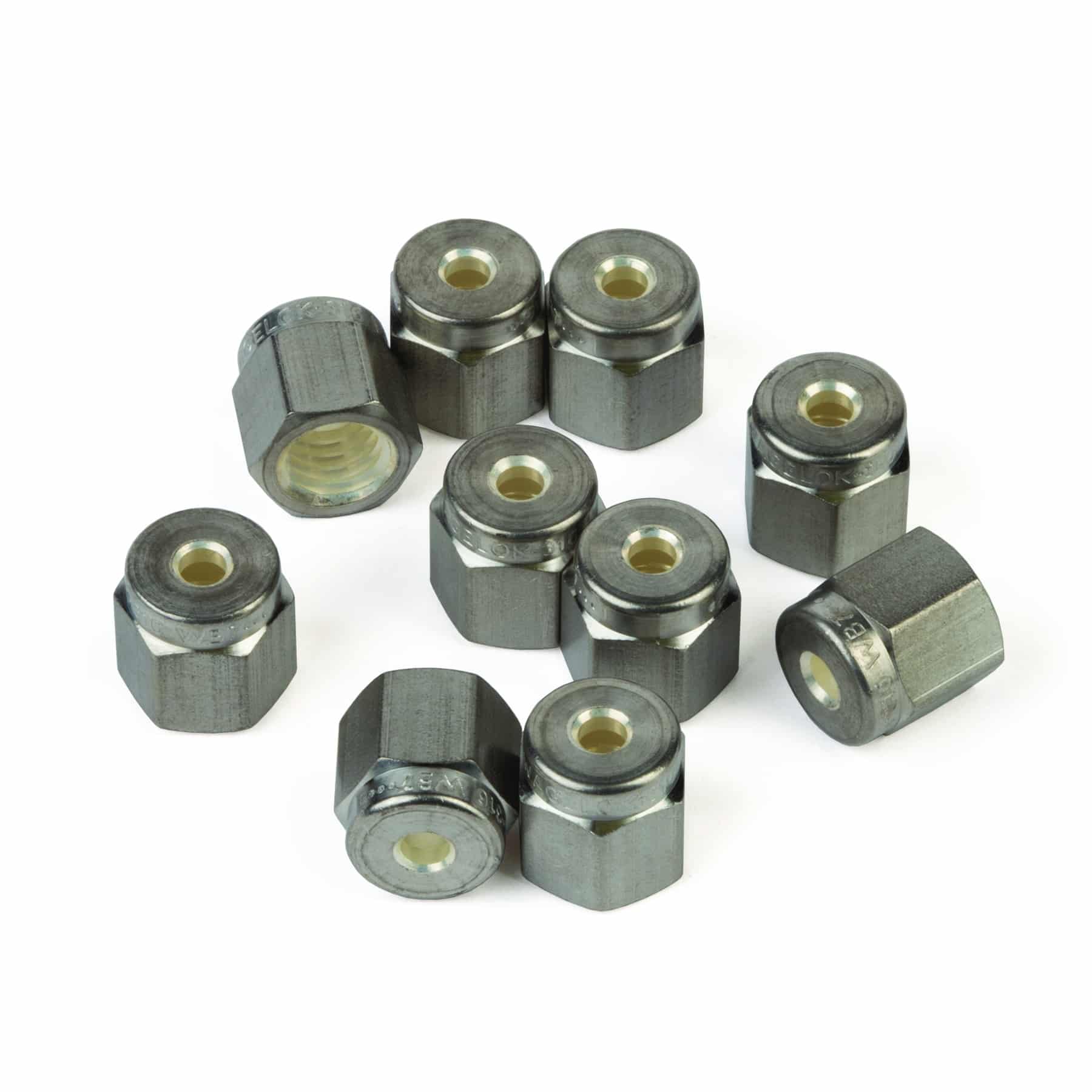

 | 20254, 27079 | Ferrules for SRI & Buck Scientific GCs (Fit 0.18 mm ID MXT Columns) | 23101  Brass1/8” Nut | 23151  Stainless Steel 1/8” Nut |

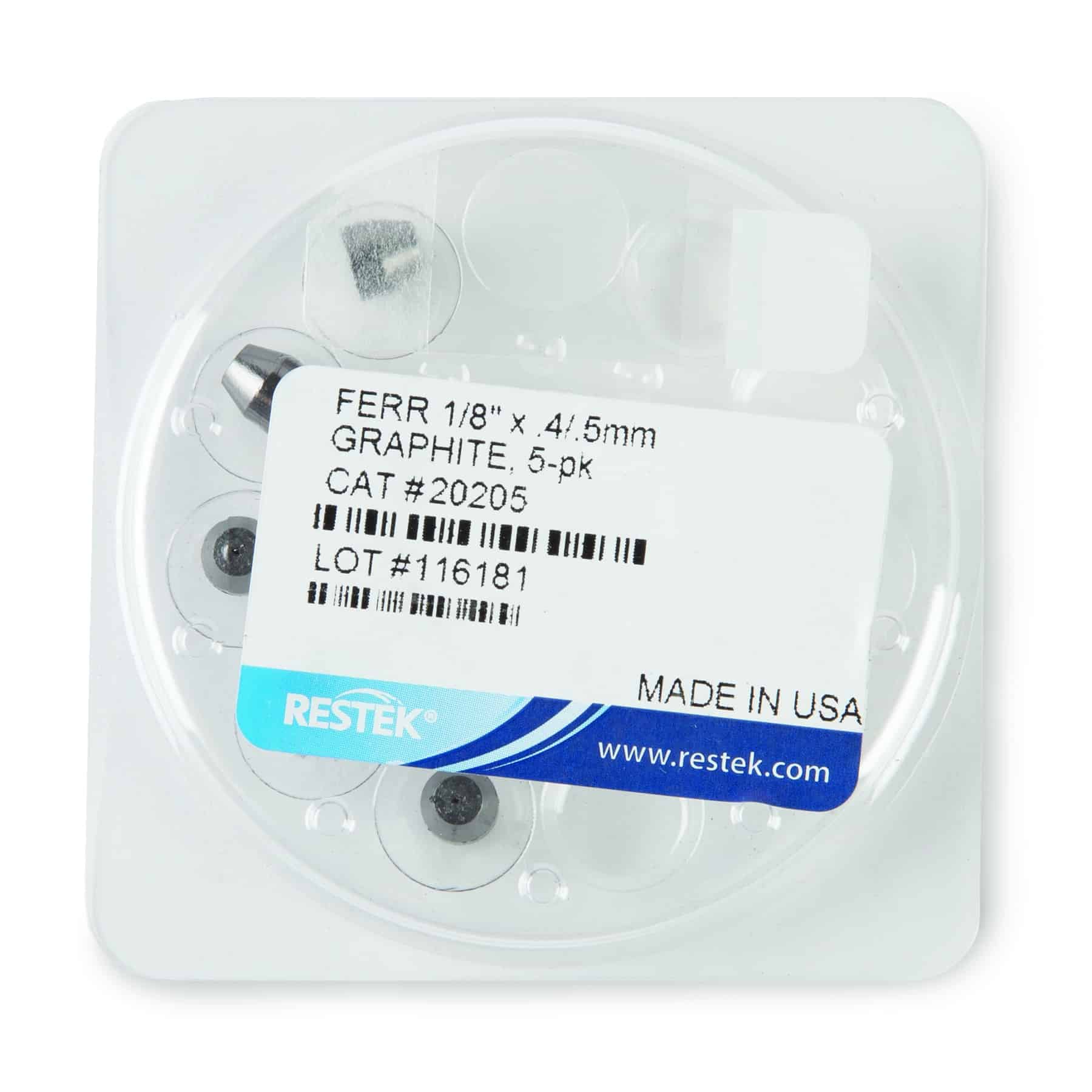

| 20205, 20255, 27080 | Ferrules for SRI and Buck Scientific GCs (Fit 0.25/0.32 mm ID MXT Columns) | |||
| 20206, 20215, 27081 | Ferrules for SRI and Buck Scientific GCs (Fit 0.53 mm ID MXT Columns) | |||
