Analyze EPA Method 533 PFAS Reliably with Resprep WAX SPE

Abstract

Low-level analysis of per-and polyfluoroalkyl substances (PFAS) requires high sensitivity and low background levels throughout the entire workflow from sample collection, transportation, and storage to analytical instrumentation and sample preparation. Resprep polymeric WAX SPE cartridges allow for accurate low-level quantitation of PFAS compounds in drinking water while meeting the requirements of EPA Method 533.

Introduction

Due to the low levels required by many regulatory agencies, the analysis of PFAS in drinking water often employs solid phase extraction (SPE) coupled with LC-MS/MS to reach low detection limits. EPA Method 533 [1] uses weak anion exchange (WAX) SPE to better retain short-chain acid compounds and obtain part-per-trillion (ppt) detection limits. However, due to the ubiquitous nature of PFAS compounds, the selection and screening of all materials and consumables that contact samples, including SPE cartridges, is critical for maintaining a clean background and allowing continued low-level analysis. In this assessment, Resprep WAX cartridges were used with a Resprep QR-12 vacuum manifold to extract samples for EPA Method 533 PFAS analysis using a Shimadzu Nexera LC and 8045 MS/MS.

Experimental

Sample Preparation

Spikes and blanks were prepared in polypropylene bottles using 250 mL deionized water spiked with isotope dilution standards as per EPA Method 533, Section 7.16.1. The 6 mL SPE cartridges, which contained 500 mg of 30 µm WAX (cat.# 28291), were placed on a Resprep QR-12 vacuum manifold (cat.# 28298-VM) that was fitted with quick-replace liners (cat.# 28310-VM). Resprep sample delivery system lines (cat.# 26250) were used to transfer the samples to the SPE cartridges. While both the quick-replace liners and sample delivery lines contain PTFE, which can be a potential source of PFAS contamination, investigation of blanks taken using all lines and all ports on the manifold showed no detectable PFAS leaching. Thorough and regular blank checking of all SPE components and solvents, especially when using new lots of materials, is recommended to ensure that background contamination is below acceptable levels.

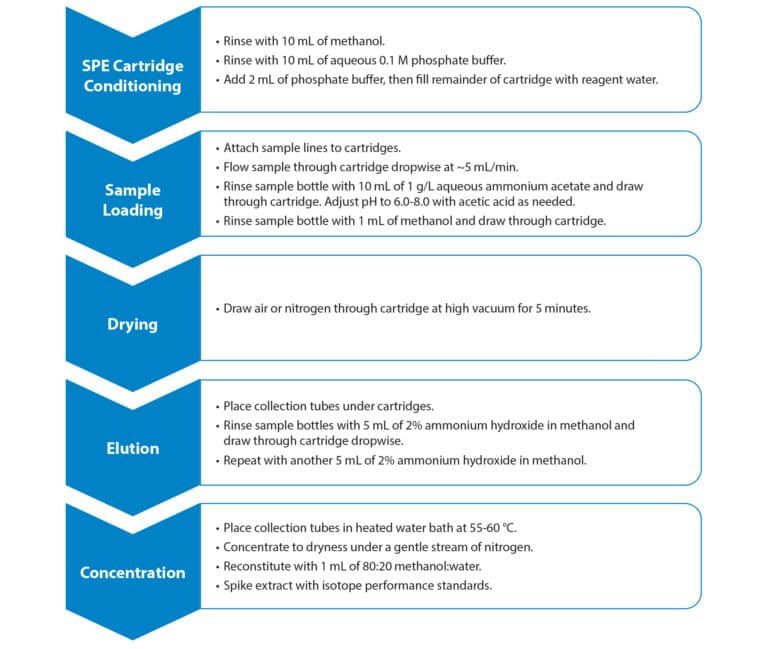

After preparation of the samples and setup of the SPE system, the samples were extracted following the instructions in EPA Method 533, Section 11.4, which is summarized in Figure 1.

Figure 1: Sample Preparation Procedure for EPA Method 533 PFAS Analysis

Analytical System

After extraction, the samples were analyzed by LC-MS/MS under the EPA Method 533 PFAS analysis conditions shown below. The use of a PFAS delay column is important to prevent any PFAS contamination upstream of the injector from coeluting with the samples. Thorough blank checking of the analytical system was performed and showed no detectable PFAS contamination.

Instrument Conditions for EPA Method 533 PFAS Analysis
System: Shimadzu Nexera X2/Shimadzu LCMS-8045
Columns:

PFAS delay column (cat.# 27854)
Analytical column: Force C18, 1.8 µm x 50 mm x 2.1 mm (cat.# 9634252)

Injection volume: 3 µL
Mobile phase A: Water, 5 mM ammonium acetate
Mobile phase B: Methanol
Flow rate: 0.4 mL/min
Temperature: 40 °C
Gradient:

Time (min)	%B
0	20
6	95
6.6	95
6.61	20
7.5	20

Ion source: electrospray
Ion mode: ESI-
Mode: MRM

Method Detection Limits (MDL)

The method detection limit was calculated from the analysis of seven blank replicates and seven low-level spikes, as outlined in EPA’s Definition and Procedure for the Determination of the Method Detection Limit, Revision 2 [2]. The spikes were made at 0.5 ng/L using a 2 µg/mL stock solution of native PFAS compounds (EPA 533 PFAS calibration standard, cat.# 30736). The standard deviations of the spike and blank results were multiplied by the Student’s t-value of 3.143 to determine the MDL, and the higher of the results between the spikes and blanks was selected as the MDL.

Accuracy and Precision

Accuracy and precision were determined by analyzing five replicate 10 ng/L spikes. The accuracy of the spikes was calculated and compared to the recovery limits of 70-130% from EPA Method 533. The relative standard deviations of the spike results were also determined.

The recovery of the isotope dilution standards was calculated from the spike replicates and compared to the recovery limits of 50-200% from EPA Method 533 for PFAS analysis.

Results and Discussion

Good chromatographic results were obtained for all compounds, as shown in Figure 2. The MDL, accuracy, and precision results for native PFAS analytes are shown in Table I. The calculated MDLs were below the reporting limits shown in Table 7 in EPA Method 533, and the accuracy of the 10 ng/mL spikes ranged from 84 to 119% of the spiked value, well within the 70-130% recovery required by the method. The spikes showed good precision as well, with the results being ≤20% RSD.

Similarly, the recoveries for the isotope dilution standards were also within 20% of the true value and had precision ≤20% RSD. The results are shown in Table II.

Figure 2: Analysis of 25 ng/mL Standard for EPA Method 533

EPA Method 533 PFAS Calibration Standard

LC_EV0584

Peaks

	Peaks	t_R (min)	Conc. (ng/L)	Precursor Ion	Product Ion
1.	Perfluoro-n-butanoic acid (PFBA)	1.933	25	213	169
2.	Perfluoro-3-methoxypropanoic acid (PFMPA)	2.544	25	229	85
3.	Perfluoro-n-pentanoic acid (PFPeA)	3.369	25	263	219
4.	Perfluorobutanesulfonic acid (PFBS)	3.594	25	299	80
5.	Perfluoro-4-methoxybutanoic acid (PFMBA)	3.669	25	279	85
6.	Perfluoro(2-ethoxyethane)sulfonic acid (PFEESA)	3.919	25	315	135
7.	Perfluoro-3,6-dioxaheptanoic acid (NFDHA)	4.084	25	295	201
8.	1H,1H,2H,2H-Perfluorohexane sulfonic acid (4:2 FTS)	4.129	25	327	307
9.	Perfluorohexanoic acid (PFHxA)	4.189	25	313	269
10.	Perfluoro-1-pentanesulfonic acid (PFPeS)	4.278	25	349	80
11.	Perfluoro(2-methyl-3-oxahexanoic) acid (HFPO-DA)	4.365	25	285	169
12.	Perfluoroheptanoic acid (PFHpA)	4.715	25	363	319

	Peaks	t_R (min)	Conc. (ng/L)	Precursor Ion	Product Ion
13.	Perfluoro-1-hexanesulfonic acid (PFHxS)	4.750	25	399	80
14.	4,8-dioxa-3H-perfluorononanoic acid (ADONA)	4.78	25	277	251
15.	1H,1H,2H,2H-Perfluorooctane sulfonic acid (6:2 FTS)	5.096	25	427	407
16.	Perfluoro-1-heptanesulfonic acid (PFHpS)	5.132	25	449	80
17.	Perfluorooctanoic acid (PFOA)	5.115	25	413	369
18.	Perfluorooctanesulfonic acid (PFOS)	5.441	25	499	80
19.	Perfluorononanoic acid (PFNA)	5.439	25	463	419
20.	9-Chlorohexadecafluoro-3-oxanonane-1-sulfonic acid (9Cl-PF3ONS)	5.588	25	531	351
21.	1H,1H,2H,2H-Perfluorodecane sulfonic acid (8:2 FTS)	5.712	25	527	507
22.	Perfluorodecanoic acid (PFDA)	5.712	25	513	469
23.	Perfluoroundecanoic acid (PFUnA)	5.954	25	563	519
24.	11-Chloroeicosafluoro-3-oxaundecane-1-sulfonic acid (11Cl-PF3OUdS)	6.049	25	631	451
25.	Perfluorododecanoic acid (PFDoA)	6.158	25	613	569

Conditions

Column

Force C18 (cat.# 9634252)

Dimensions:

50 mm x 2.1 mm ID

Particle Size:

1.8 µm

Pore Size:

100 Å

Temp.:

40 °C

Standard/Sample

EPA 533 PFAS calibration standard (cat.# 30736)

Diluent:

80:20 Methanol:water

Conc.:

25 ng/mL

Inj. Vol.:

3 µL

Mobile Phase

Water, 5 mM ammonium acetate

Methanol

Time (min)	Flow (mL/min)	%A	%B
0.00	0.4	80	20
6.00	0.4	5	95
6.60	0.4	5	95
6.61	0.4	80	20
7.50	0.4	80	20

Detector	Shimadzu LCMS-8045
Ion Source:	Electrospray
Ion Mode:	ESI-
Mode:	MRM
Instrument	Shimadzu Nexera X2
Notes	Branched isomers for PFOA, PFOS, and PFHxS labeled as peak number “a” and “b.” PFAS delay column used (cat.# 27854).

Download PDF

Table I: Results from MDL, Precision, and Accuracy Experiments for Native PFAS

Compound	Abbreviation	MDL (ng/L)	Accuracy (%)	%RSD
Perfluorobutanoic acid	PFBA	8.5	95	20
Perfluoro-3-methoxypropanoic acid	PFMPA	0.2	119	20
Perfluoropentanoic acid	PFPeA	0.2	114	10
Perfluorobutane sulfonate	PFBS	0.3	94	14
Perfluoro-4-methoxybutanoic acid	PFMBA	1.1	88	8
Perfluoro(2-ethoxyethane)sulfonic acid	PFEESA	0.2	84	12
Nonafluoro-3,6-dioxaheptanoic acid	NFDHA	0.2	103	15
1H, 1H, 2H,2H-perfluorohexane sulfonate	4:2 FTS	0.3	97	19
Perfluorohexanoic acid	PFHxA	0.1	98	11
Perfluoropentane sulfonate	PFPeS	0.2	96	13
Hexafluoropropylene oxide dimer acid	HFPO-DA	1	89	13
Perfluoroheptanoic acid	PFHpA	0.4	101	17
Perfluorohexane sulfonate	PFHxS	0.3	110	15
4,8-Dioxa-3H-perfluorononanoic acid	ADONA	1.1	100	7
1H, 1H, 2H,2H-perfluorooctane sulfonate	6:2 FTS	0.7	105	8
Perfluoroheptane sulfonate	PFHpS	0.5	101	12
Perfluorooctanoic acid	PFOA	0.2	112	9
Perfluorooctane sulfonate	PFOS	0.3	109	5
Perfluorononanoic acid	PFNA	0.5	101	10
9-Chlorohexadecafluoro-3-oxanonane-1-sulfonic acid	9Cl-PF3ONS	0.2	93	7
Perfluorodecanoic acid	PFDA	0.4	111	6
1H, 1H, 2H,2H-perfluorodecane sulfonate	8:2 FTS	0.6	109	5
Perfluoroundecanoic acid	PFUnA	0.8	110	6
11-Chloroeicosafluoro-3-oxaundecane-1-sulfonic acid	11Cl-PF3OUdS	0.3	95	11
Perfluorododecanoic acid	PFDoA	1.1	94	7

Table II: Results from Precision and Accuracy Experiments for Isotope Dilution Standards

Compound	Abbreviation	Accuracy (%)	%RSD
Perfluoro-n-[1,2,3,4-¹³C₄]butanoic acid	¹³C₄-PFBA	111	13
Perfluoro-n-[1,2,3,4,5-¹³C₅]pentanoic acid	¹³C₅-PFPeA	118	14
Sodium perfluoro-1-[2,3,4-¹³C₃]butanesulfonate	¹³C₃-PFBS	108	16
Sodium 1H,1H,2H,2H-perfluoro-1-[1,2-¹³C₂]hexane sulfonate	¹³C₂-4:2FTS	97	12
Perfluoro-n-[1,2,3,4,6-¹³C₅]hexanoic acid	¹³C₅-PFHxA	115	14
2,3,3,3-Tetrafluoro-2-(1,1,2,2,3,3,3-heptafluoropropoxy¹³C₃-propanoic acid	¹³C₃-HFPO-DA	89	14
Perfluoro-n-[1,2,3,4-¹³C₄]heptanoic acid	¹³C₄-PFHpA	110	14
Sodium perfluoro-1-[1,2,3-¹³C₃]hexanesulfonate	¹³C₃-PFHxS	114	14
Sodium 1H,1H,2H,2H-perfluoro-1-[1,2-¹³C₂]-octane sulfonate	¹³C₂-6:2FTS	92	7
Perfluoro-n-[¹³C₈]octanoic acid	¹³C₈-PFOA	113	14
Sodium perfluoro-[¹³C₈]octanesulfonate	¹³C₈-PFOS	102	7
Perfluoro-n-[¹³C₉]nonanoic acid	¹³C₉-PFNA	101	9
Perfluoro-n-[1,2,3,4,5,6-¹³C₆]decanoic acid	¹³C₆-PFDA	111	12
Sodium 1H,1H,2H,2H-perfluoro-1-[1,2-¹³C₂]-decane sulfonate	¹³C₂-8:2FTS	118	14
Perfluoro-n-[1,2,3,4,5,6,7-¹³C₇]undecanoic acid	¹³C₇-PFUnA	114	13
Perfluoro-n-[1,2-¹³C₂]dodecanoic acid	¹³C₂-PFDoA	112	13

Conclusions

EPA Method 533 PFAS analysis in drinking water can be challenging with low-level analysis complicated by background contamination. Resprep WAX cartridges have been shown to provide performance that meets or exceeds the requirements of EPA Method 533, allowing for analysis of PFAS at ng/L levels and lower. Visit www.restek.com/PFAS for additional products, methods, and technical resources.
